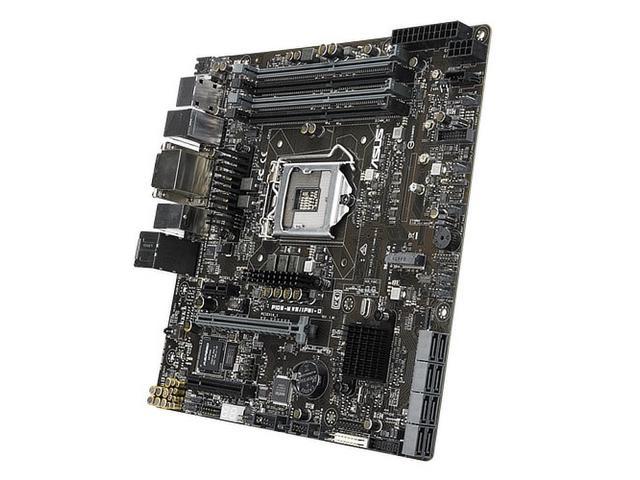

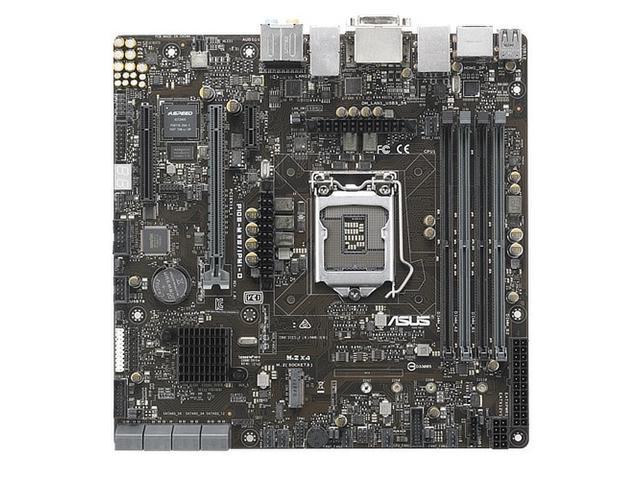

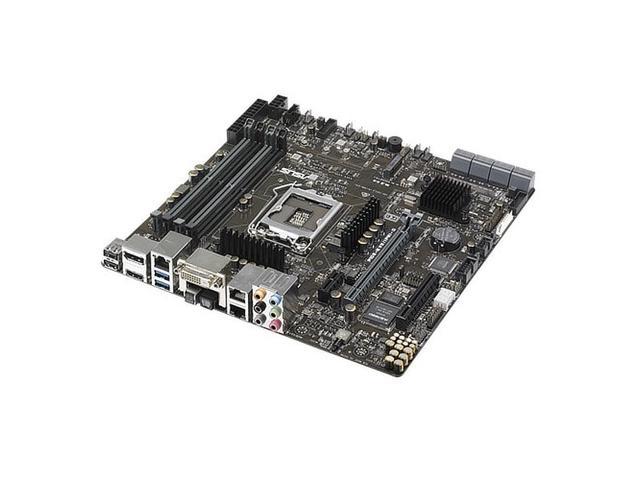

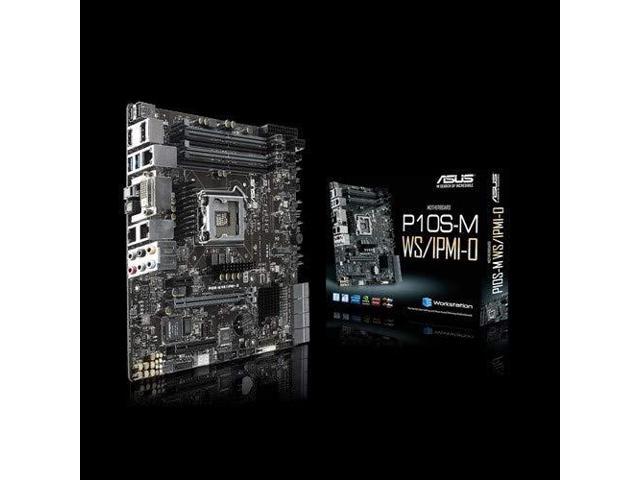

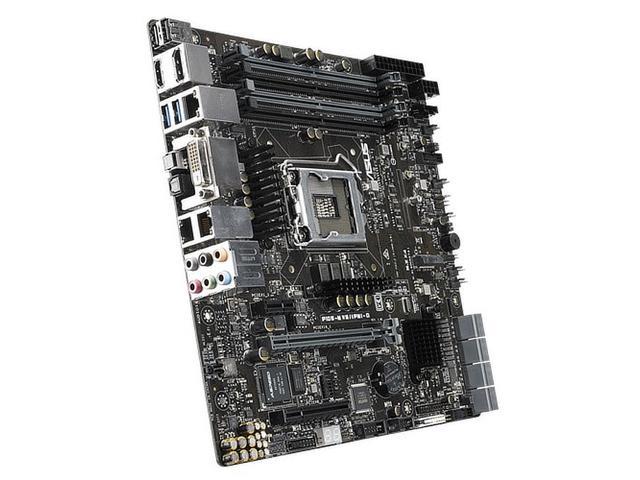

ASUS P10S-M WS/IPMI-O Micro ATX Server Motherboard LGA 1151 Intel C236
SKU: 9SIA4RE8WA376522.347.000₫
LGA 1151
Intel C236
Description
Learn more about the ASUS P10S-M WS/IPMI-O
| Brand | ASUS |
|---|---|
| Model | P10S-M WS/IPMI-O |
| CPU Socket Type | LGA 1151 |
|---|---|
| CPU Type | Build in Intel Socket 1151 for 7th/6th Generation Core i7/Core i5/Core i3/for Xeon E3-1200 v6/v5 and 7th/6th genereation Core, Pentium and Celeron Processors |
| North Bridge | Intel C236 |
|---|
| Number of DDR4 Slots | 4 x 288-pin |
|---|---|
| DDR4 Standard | DDR4 2400/ 2133 * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor. |
| Maximum Memory Supported | 64GB |
| Channel Supported Channel Supported | Dual Channel |
| ECC Supported | Non-ECC |
| PCI Express 3.0 x16 | 1 x PCIe 3.0/2.0 x16 (x16 mode) |
|---|---|
| PCI Express x8 | 1 x PCIe 3.0/2.0 x8 (x4 mode) * From PCH |
| PCI Express x1 | 1 x PCIe 3.0/2.0 x1 (x1 mode) * From PCH |
| SATA | 8 x SATA 6.0Gb/s |
|---|
| Onboard Video Chipset Onboard Video Chipset | Integrated Graphics Processor Multi-VGA output support: HDMI/DVI-D/DisplayPort ports – Supports HDMI with max. resolution 4096 x 2160 @ 60 Hz / 4096 x 2160 @ 24 Hz – Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz – Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz Maximum shared memory of 512MB Supports Intel HD Graphics, InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider Supports up to 3 displays simultaneously Aspeed AST2400 with 32MB VRAM |
|---|
| Audio Chipset Audio Chipset | Realtek ALC1150 |
|---|---|
| Audio Channels Audio Channels | 8 Channels |
| LAN Chipset | Intel I210, 2 x Gigabit LAN Controller(s) |
|---|

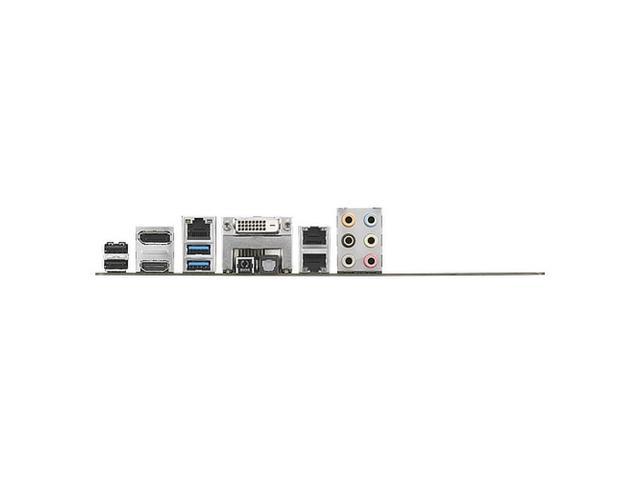

| Video Ports | 1 x DVI-D 1 x DisplayPort 1 x HDMI |
|---|---|
| RJ45 | 1 x Management LAN 2 x LAN (RJ45) port(s) |
| USB 1.1/2.0 | 2 x USB 2.0 |
| USB 3.1 | 2 x USB 3.1 Gen 1 |
| S/PDIF Out S/PDIF Out | 1 x Optical |
| Audio Ports | 6 Ports |
| Onboard USB | 2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) |
|---|
| Features | Rack Optimized Compact Workstation Board with Complete Remote Management
Design for rack optimized solution with out-of band remote management Accelerate to 32Gbit/s data-transfer speeds with M.2 native NVMe supported Optimized integrated graphic power supported latest API Drive three independent displays simultaneously with HDMI, DisplayPort, DVI-D Remote Management with optional ASMB8 |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6″ x 9.6″ |
| Package Contents | Accessories: User’s manual I/O Shield 1 x COM port cable(s) 8 x SATA 6Gb/s cable(s) 1 x VGA bracket(s) 1 x SCD 1 x ASWM Enterprise SDVD 1 x OSG manual 1 x Metal Plate for LGA1151 |
|---|
| Date First Available | March 12, 2019 |
|---|
