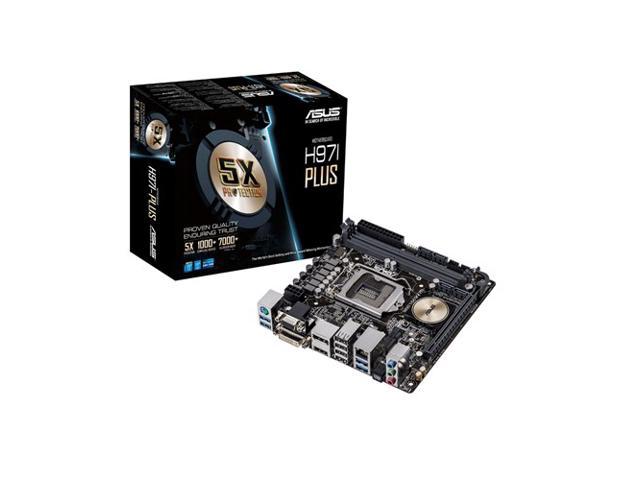

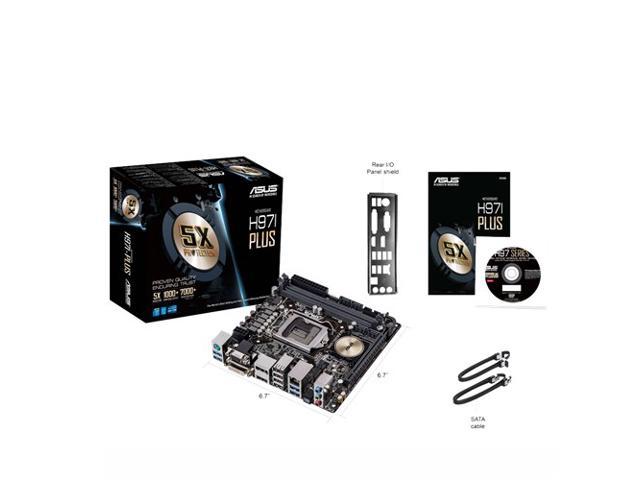

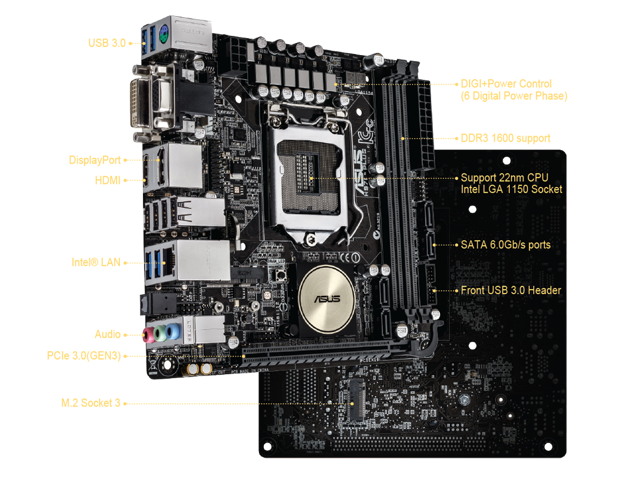

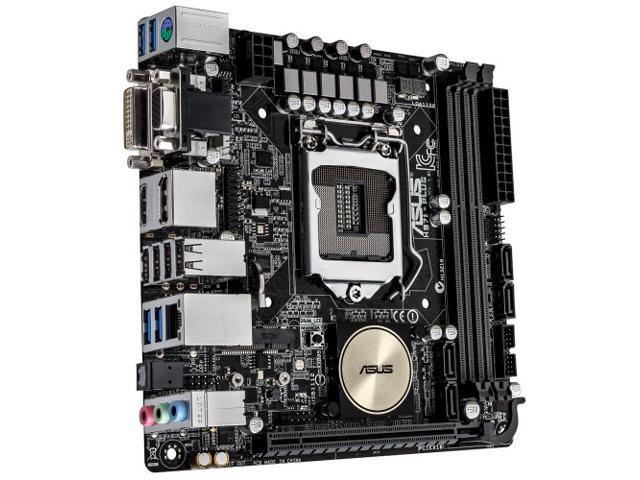

ASUS LGA 1150 Intel H97 HDMI SATA 6Gb/s USB 3.0 Mini ITX Intel Motherboard Model H97I-PLUS

Supported CPU
CPU Socket Type : LGA 1150
CPU Type : Core i7 / i5 / i3 / Pentium / Celeron (LGA1150)

Chipsets
Chipset : Intel H97

Memory
Number of Memory Slots : 2×240pin
Memory Standard : DDR3 1600/1333
Maximum Memory Supported : 16GB
Channel Supported : Dual Channel

Expansion Slots
PCI Express 3.0 x16 : 1 x PCI Express 3.0 x16

Storage Devices
SATA 6Gb/s : 4 x SATA 6Gb/s
M.2 : 1 x M.2
SATA RAID : 0/1/5/10

Onboard Video
Onboard Video Chipset : Supported only by CPU with integrated graphic

Onboard Audio
Audio Chipset : Realtek ALC887
Audio Channels : 8 Channels

Onboard LAN
LAN Chipset : Intel I218-V
Max LAN Speed : 10/100/1000Mbps

Rear Panel Ports
PS/2 : 1 x PS/2 keyboard/mouse port
Video Ports : 1 x DVI-D
1 x VGA
HDMI : 1 x HDMI
DisplayPort : 1 x DisplayPort
USB 3.0 : 4 x USB 3.0
USB 1.1/2.0 : 4 x USB 2.0
S/PDIF Out : 1 x Optical

Internal I/O Connectors
Onboard USB : 2 x USB 3.0 + 2 x USB 2.0
:
Other Connectors :
1 x 4-pin CPU Fan connector
2 x 4-pin Chassis Fan connectors for 3-pin (DC mode) and 4-pin (PWM mode) coolers control
1 x Front panel audio connector (AAFP)
1 x S/PDIF out header
1 x TPM connector
1 x 24-pin EATX Power connector
1 x 8-pin EATX 12V Power connector
1 x Clear CMOS header(s)
1 x System panel connector
1 x MemOK! button

Features

ASUS 5X PROTECTION
-ASUS motherboards safeguard your PC with 5X PROTECTION: DIGI+ VRM, DRAM Fuse, ESD Guards, High-Quality 5K-Hour Solid Capacitors, and Stainless Steel Back I/O ensure the best quality, reliability, and durability

ASUS Digital Power Design
-ASUS Digital Power Control: Digital Power Design for CPU
-ASUS 6 Phase Power Design
-ASUS CPU power utility

ASUS DRAM Fuse
-Enhanced DRAM overcurrent protection and short circuit damage prevention

ASUS ESD Guards
-Ehanced ESD protection

ASUS High-Quality 5K Solid Capacitors
-2.5x Long Lifespan with excellent durability

ASUS Stainless Steel Back I/O
-3x More durable corrosion-resistant coating

UEFI BIOS
-Most advanced options with fast response time

M.2 onboard
-The latest transfer technology with up to 10 Gb/s data transfer speeds

ASUS Fan Xpert 2+
-Ultimate cooling and quietness

Media Streamer
-Pipe music or movies from your PC to a smart TV
-Media Streamer app for portable smartphone/tablet, supporting iOS7 and Android 4.0 system

Gaming Scenario
ASUS Audio Features
-Flawless audio that makes you part of the game

ASUS Exclusive Features
-USB 3.0 Boost
-Ai Charger
-AI Suite 3
-Disk Unlocker
-MemOK!

EZ DIY
Push Notice
-Monitor your PC status with smart devices in real time

UEFI BIOS EZ Mode
-Featuring friendly graphics user interface
-ASUS CrashFree BIOS 3
-ASUS EZ Flash 2

Q-Design
-ASUS Q-DIMM
-ASUS Q-Slot
