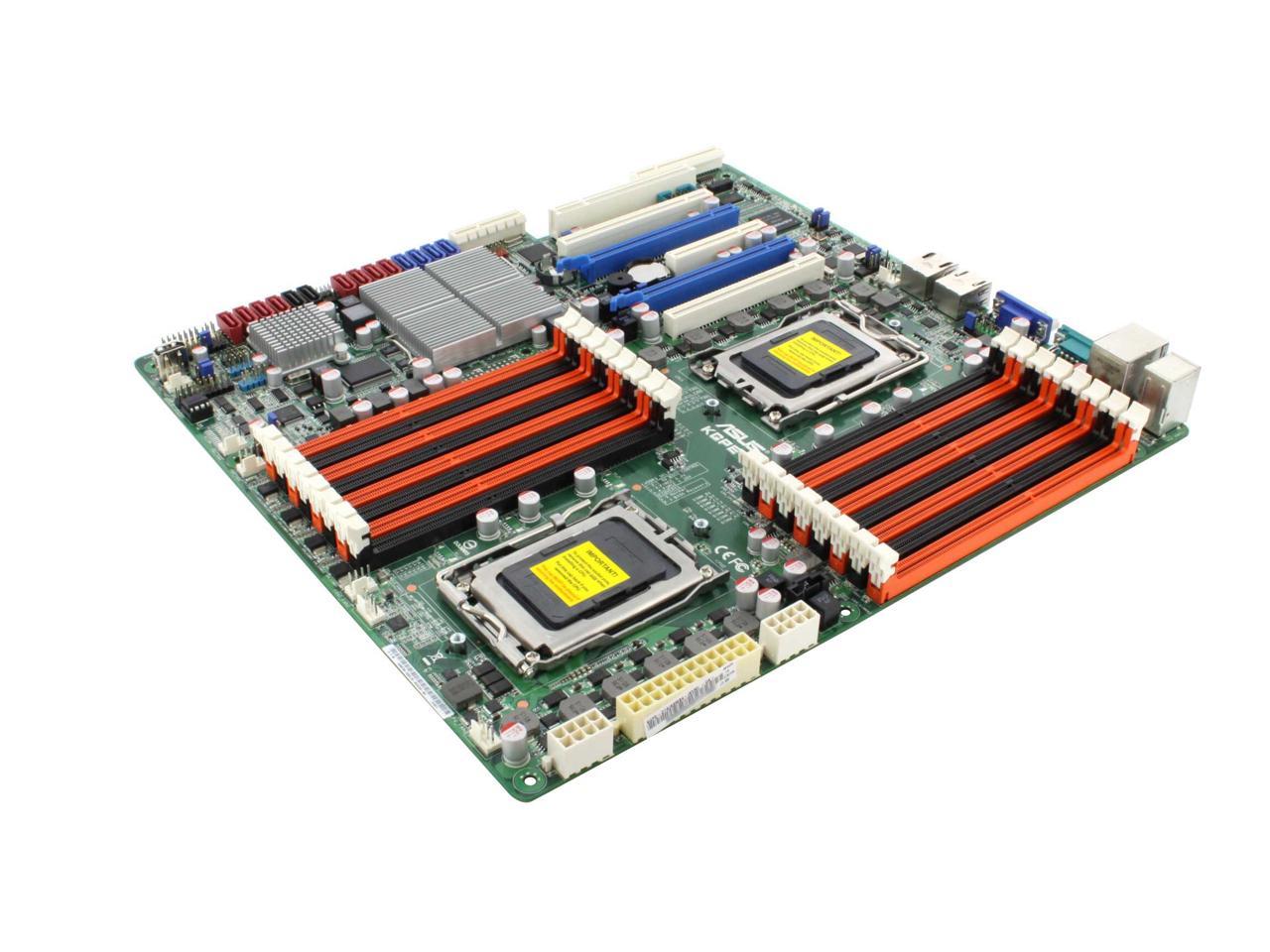

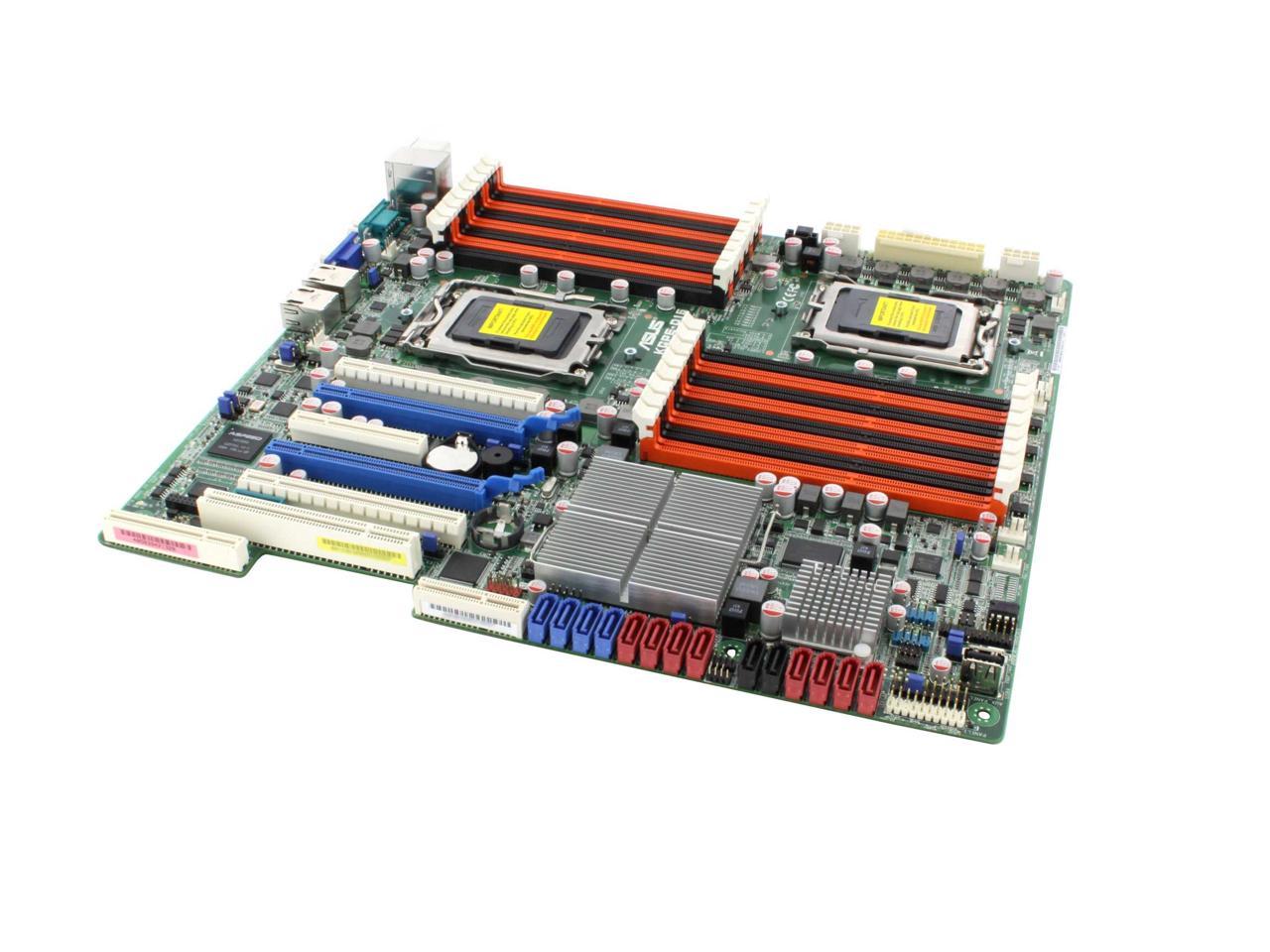

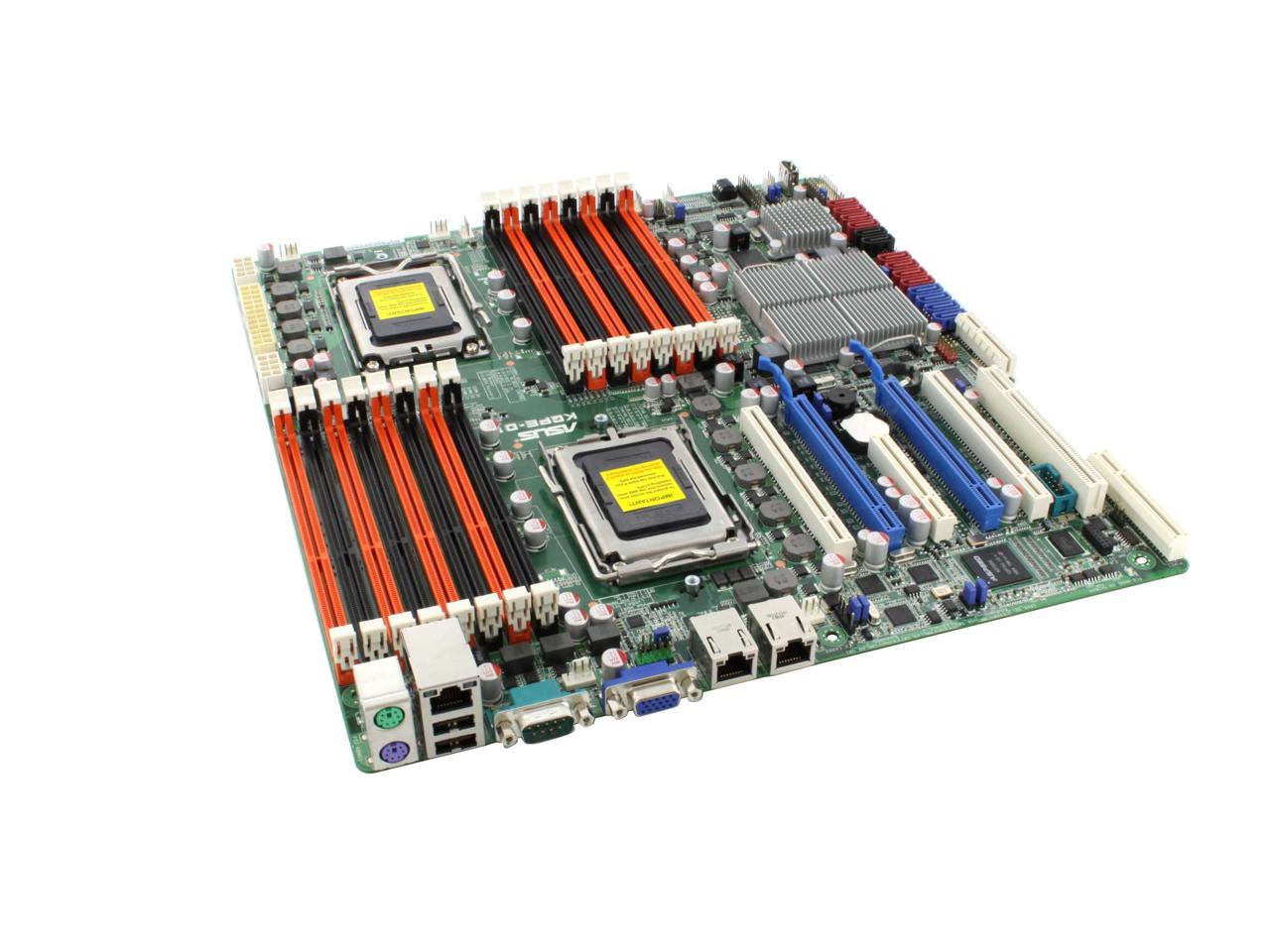

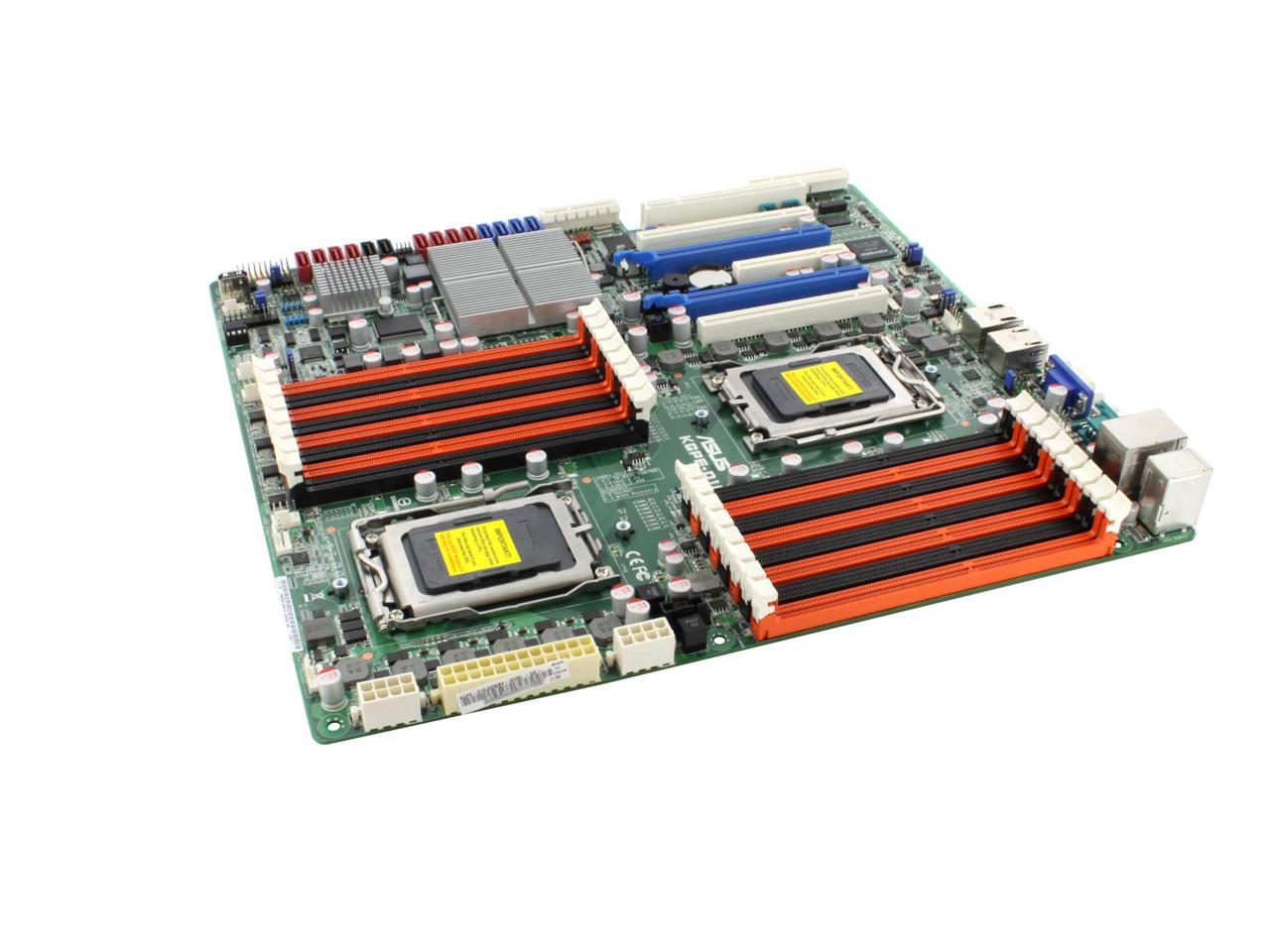

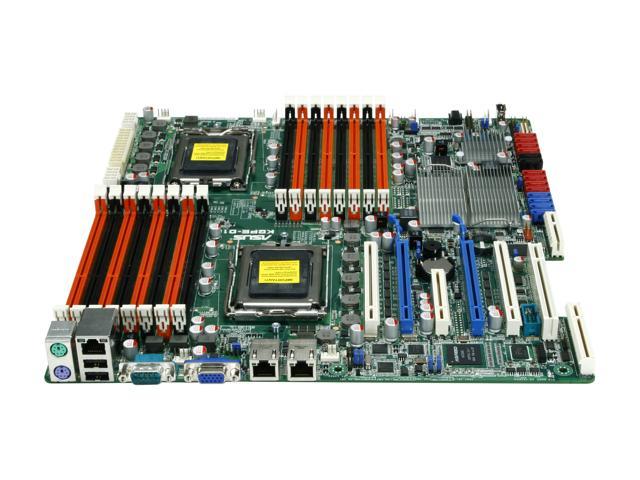

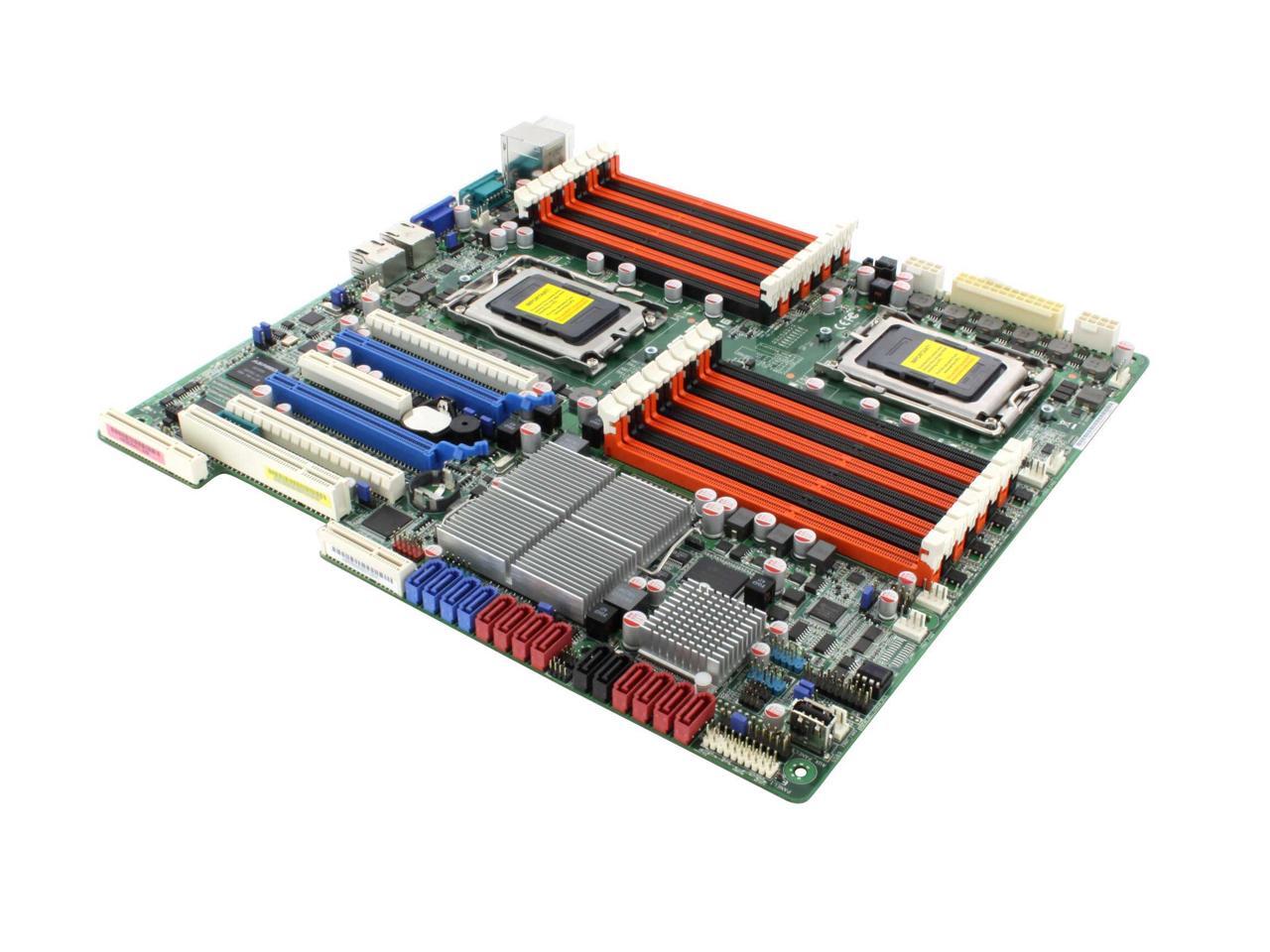

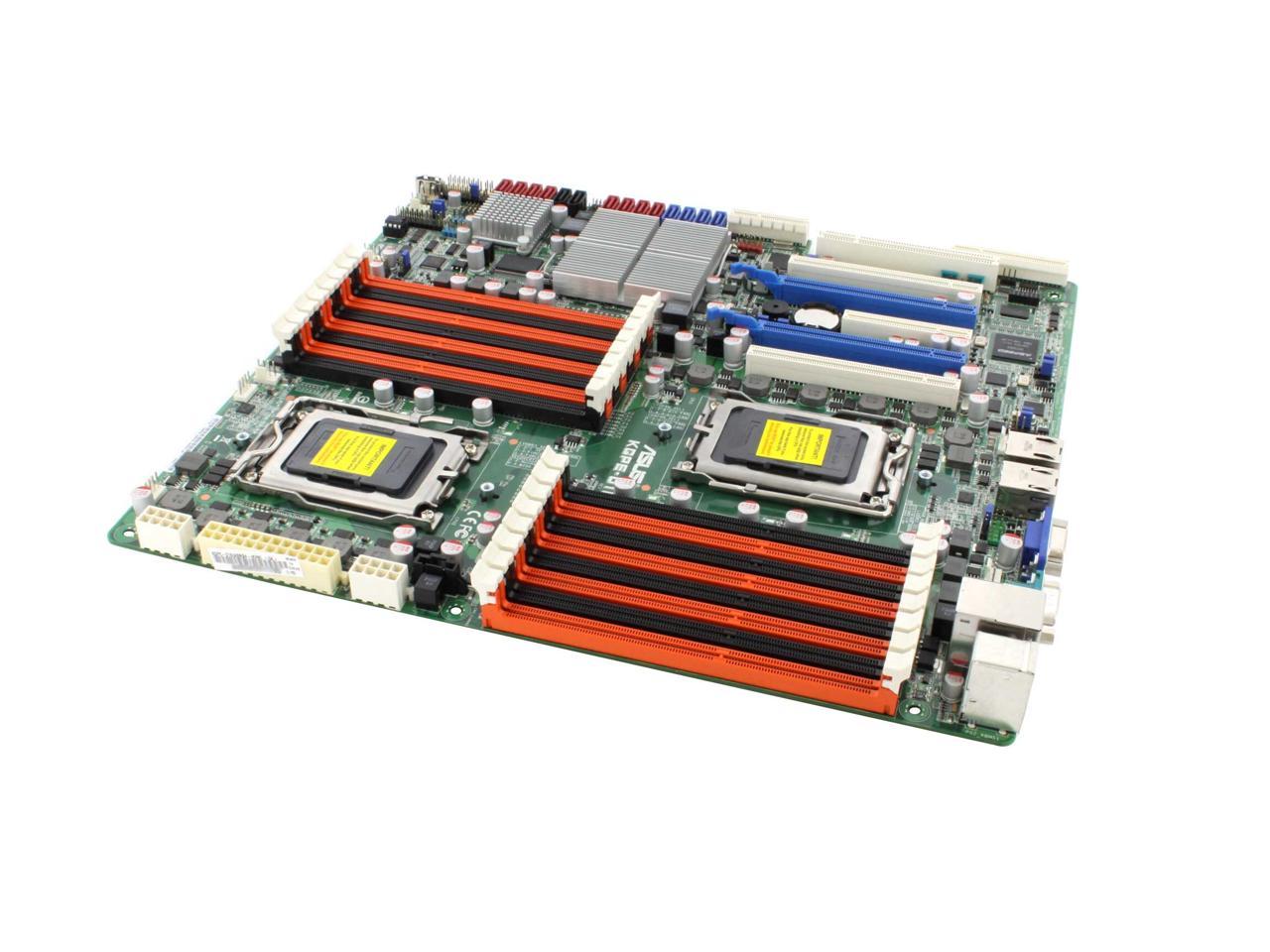

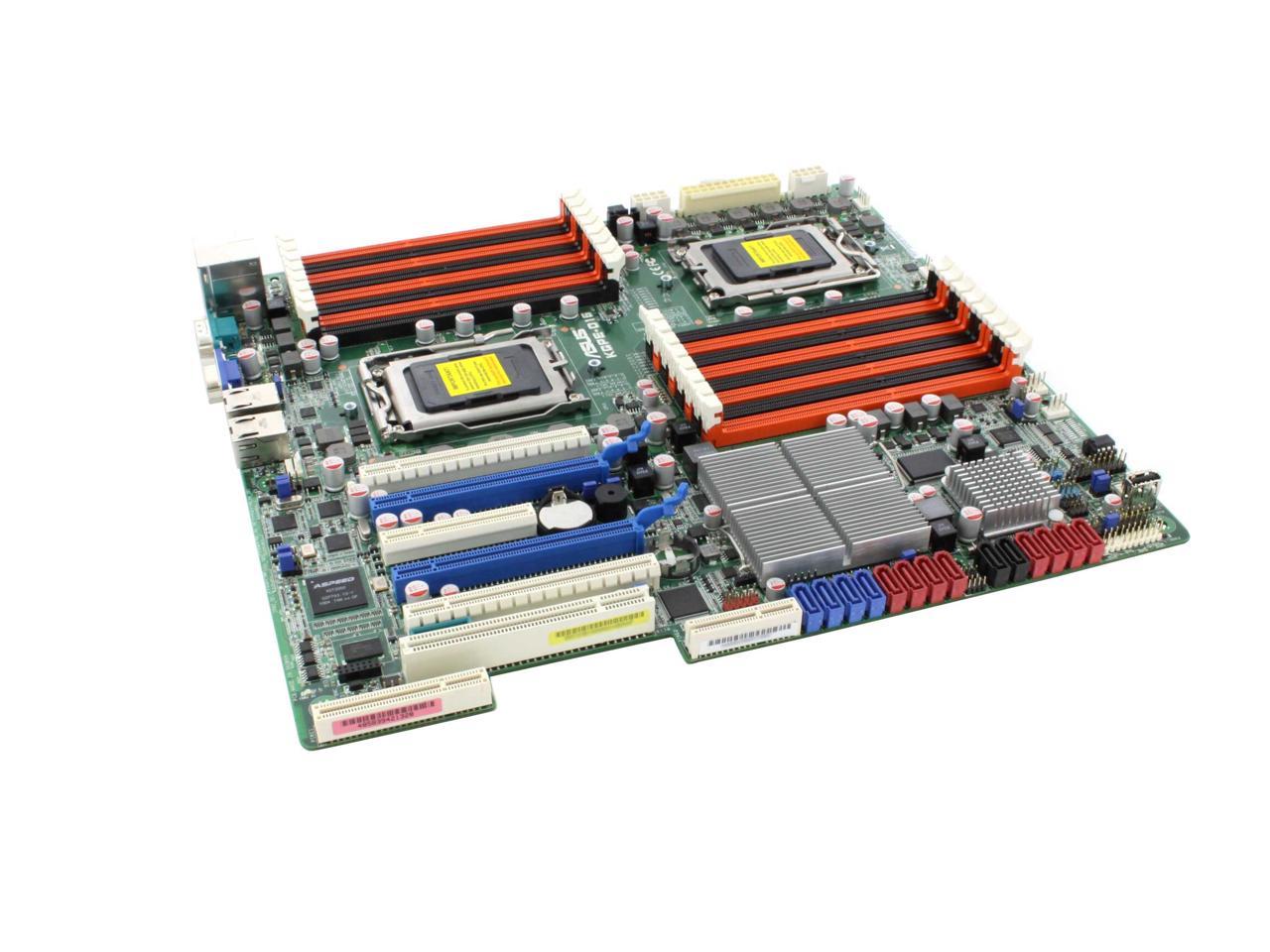

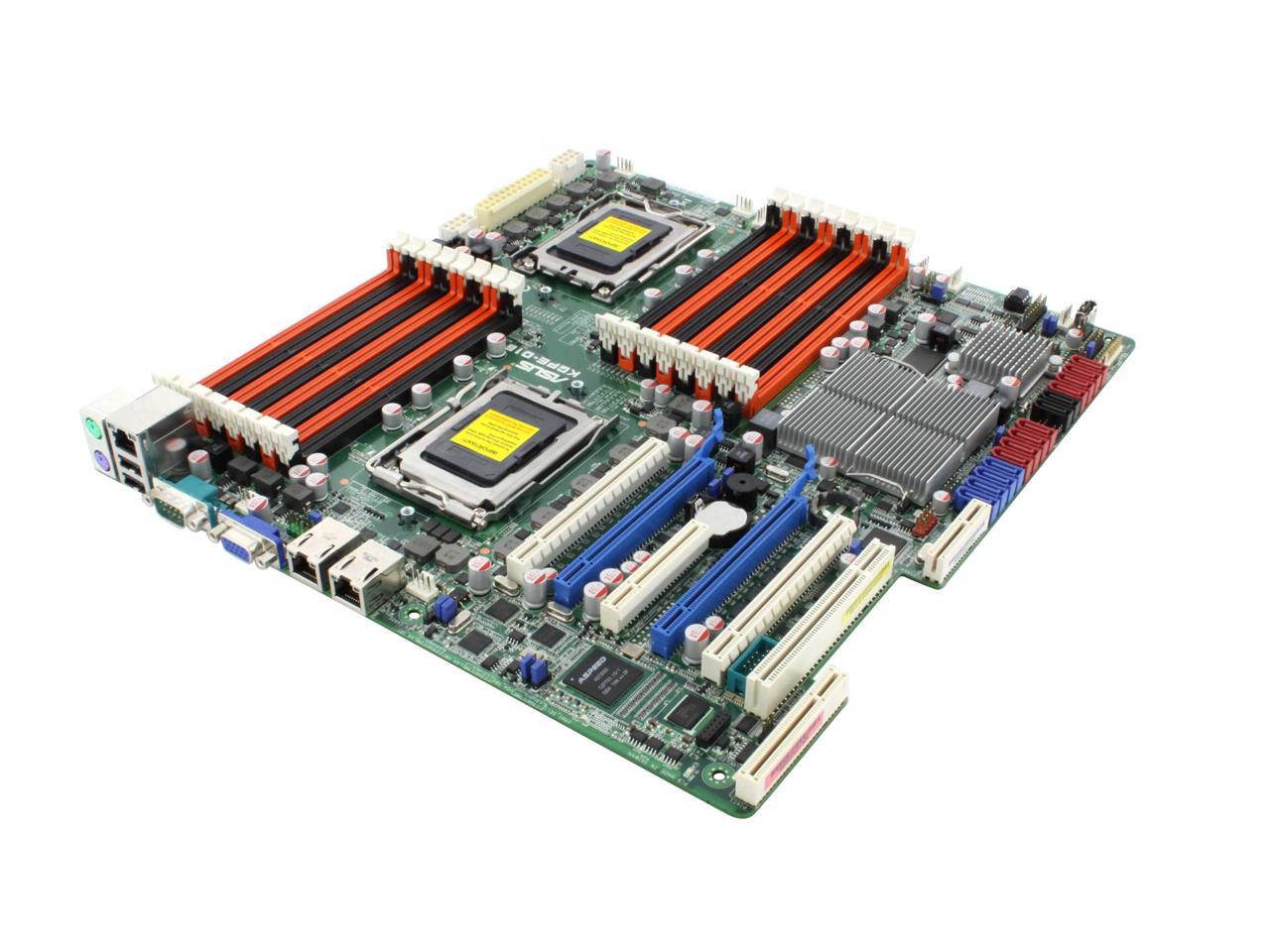

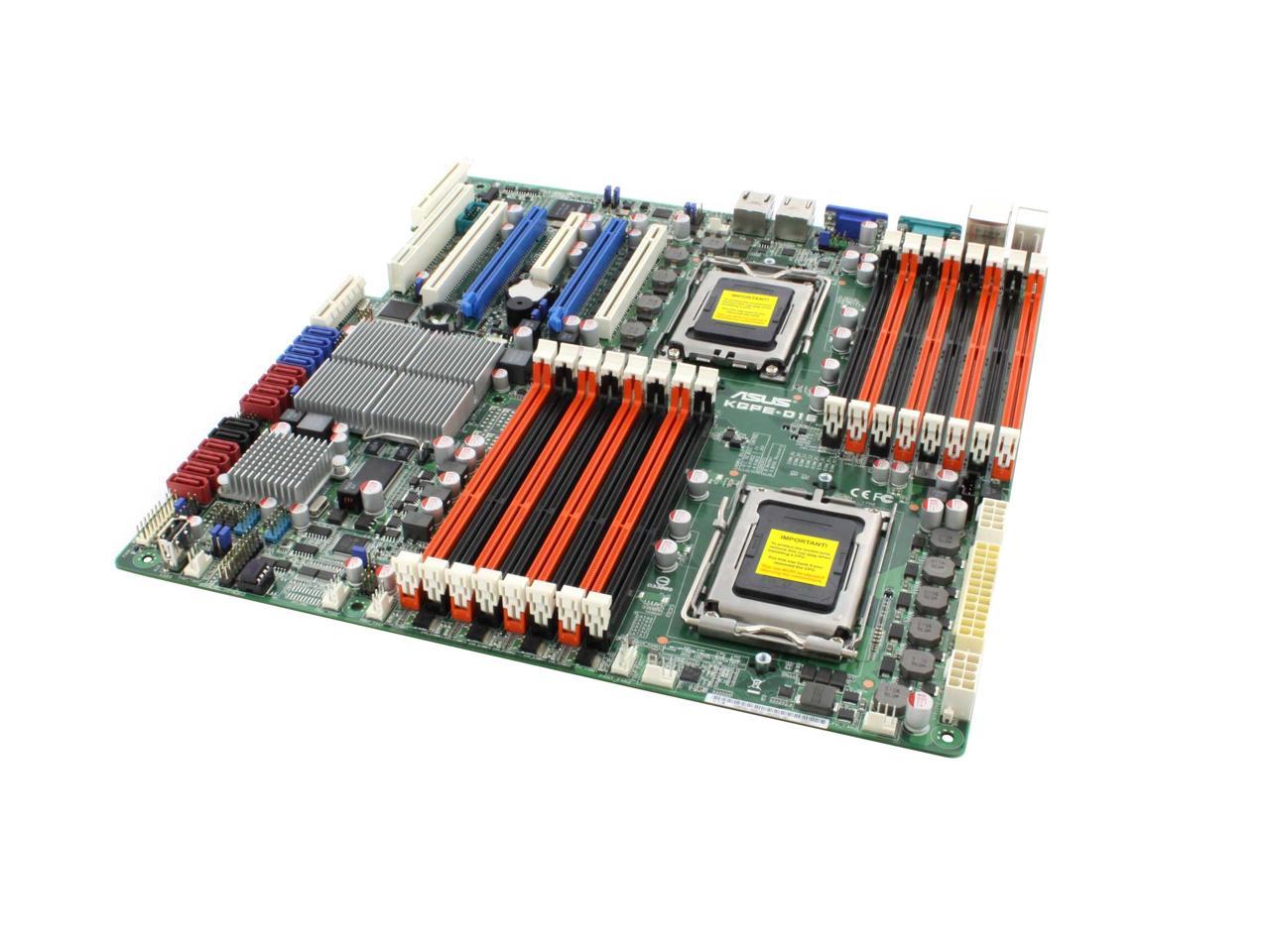

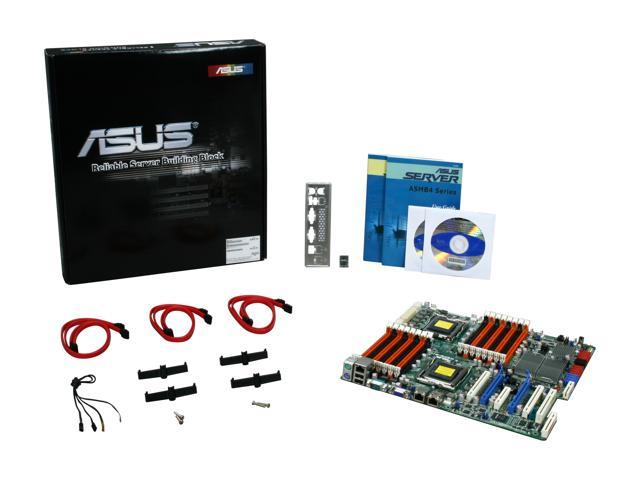

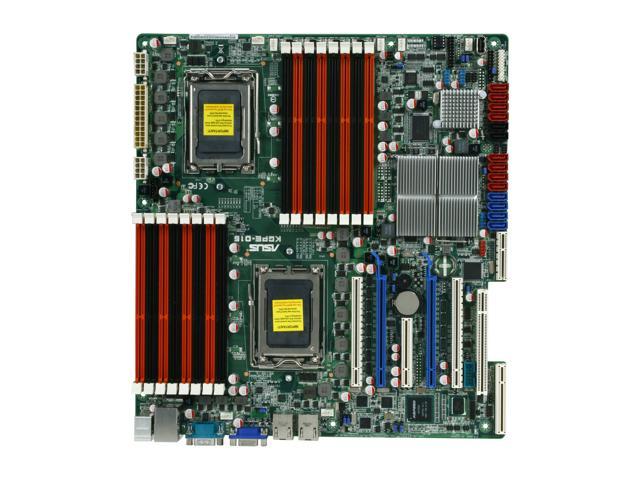

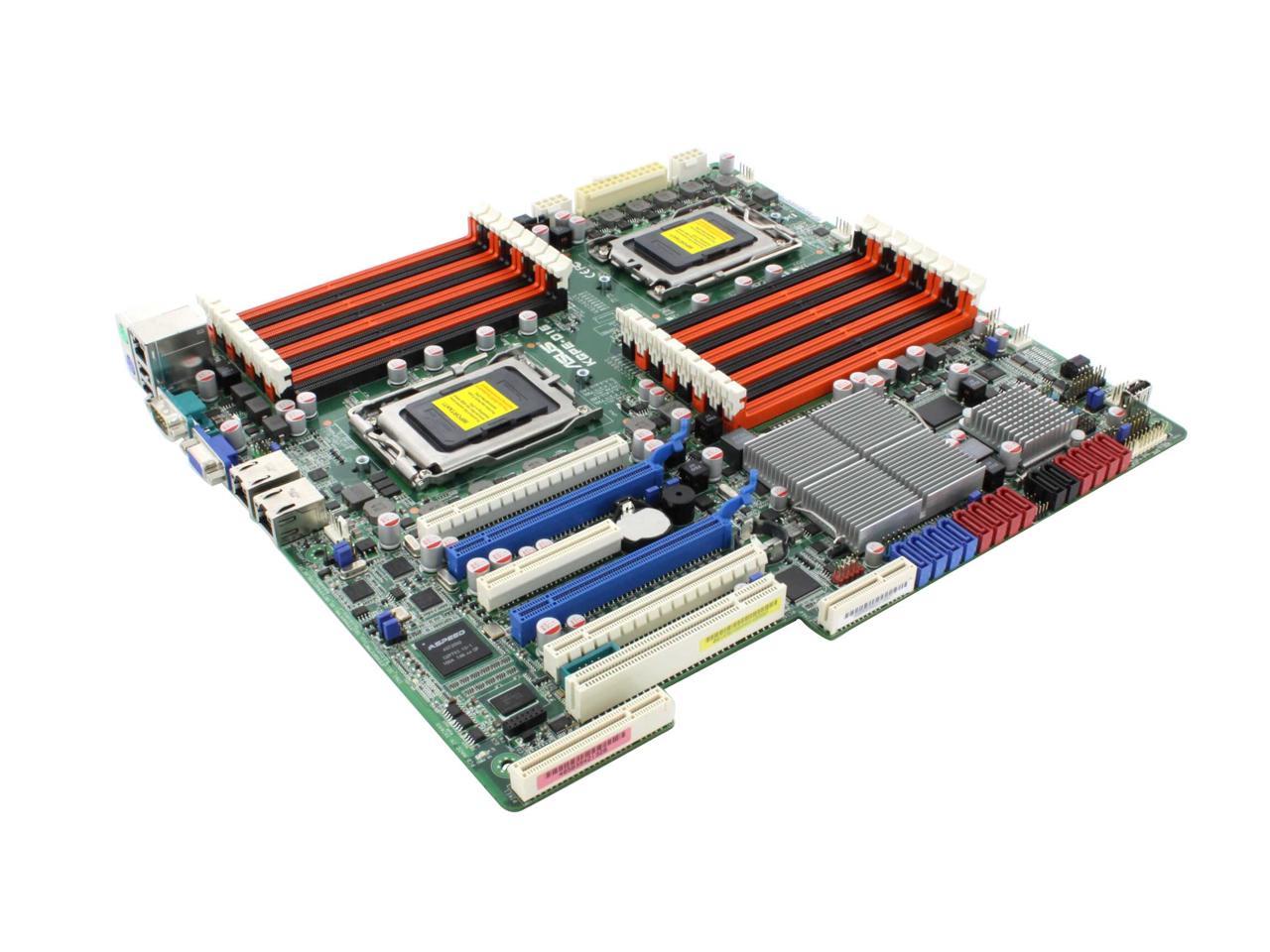

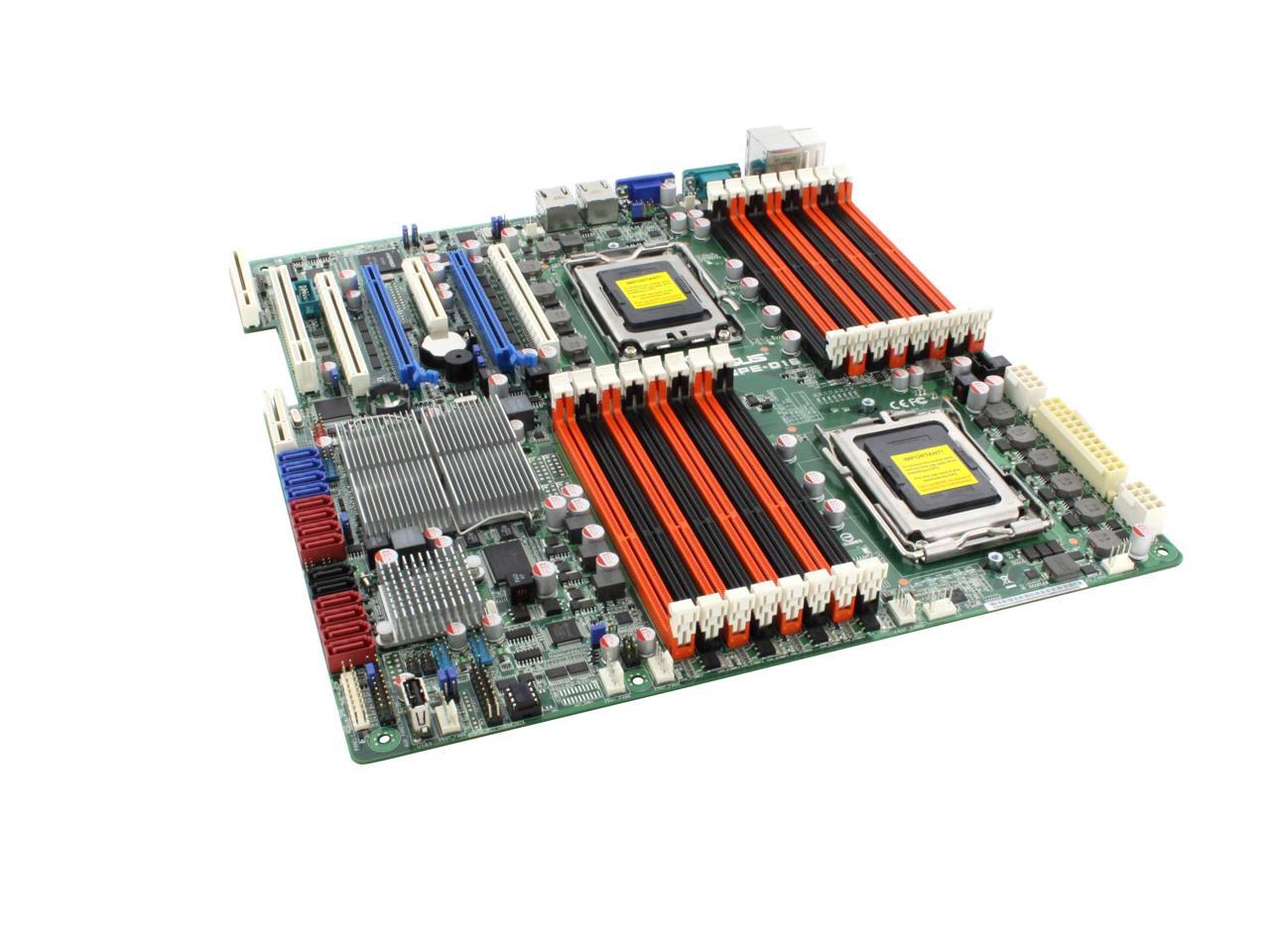

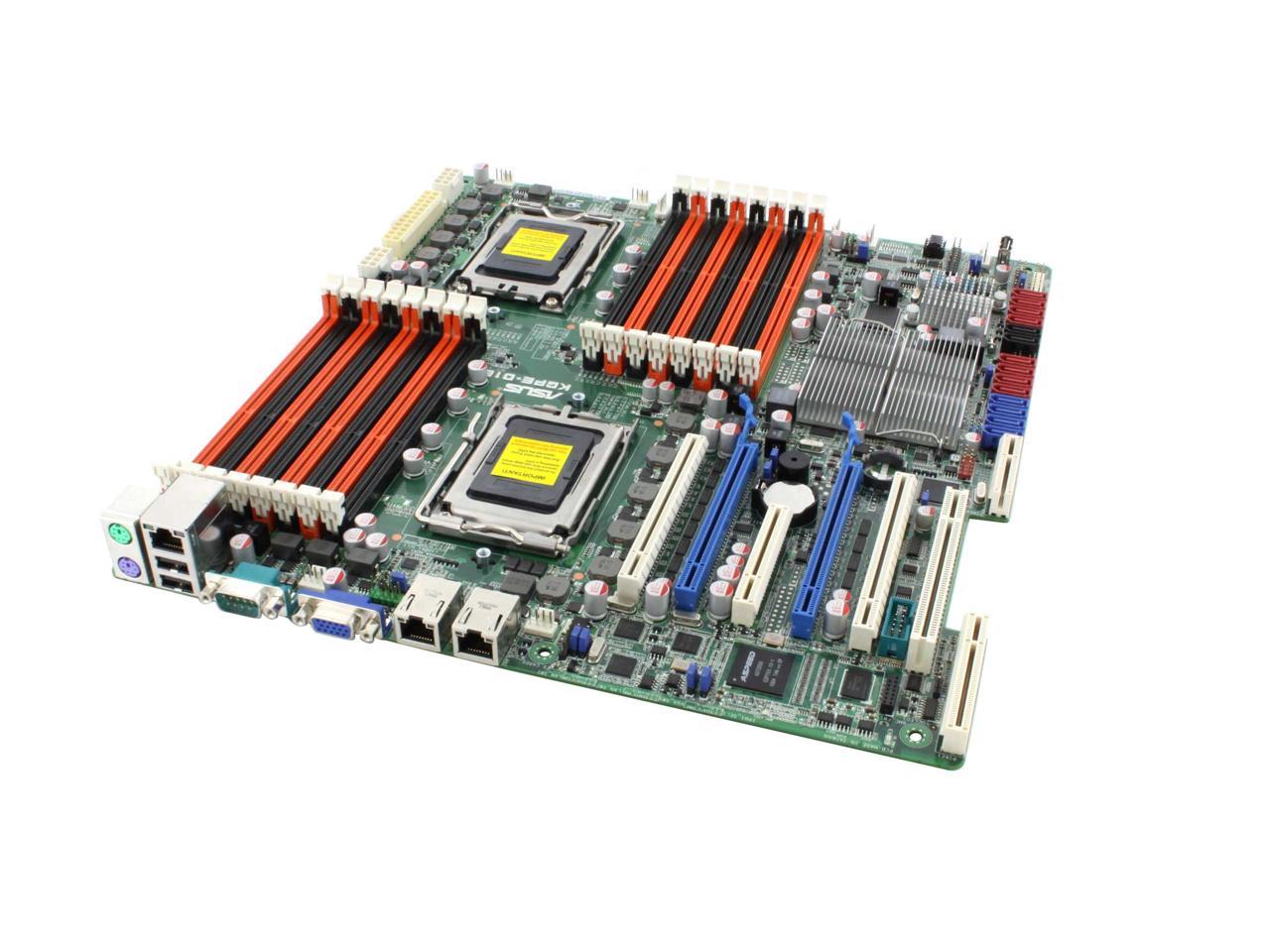

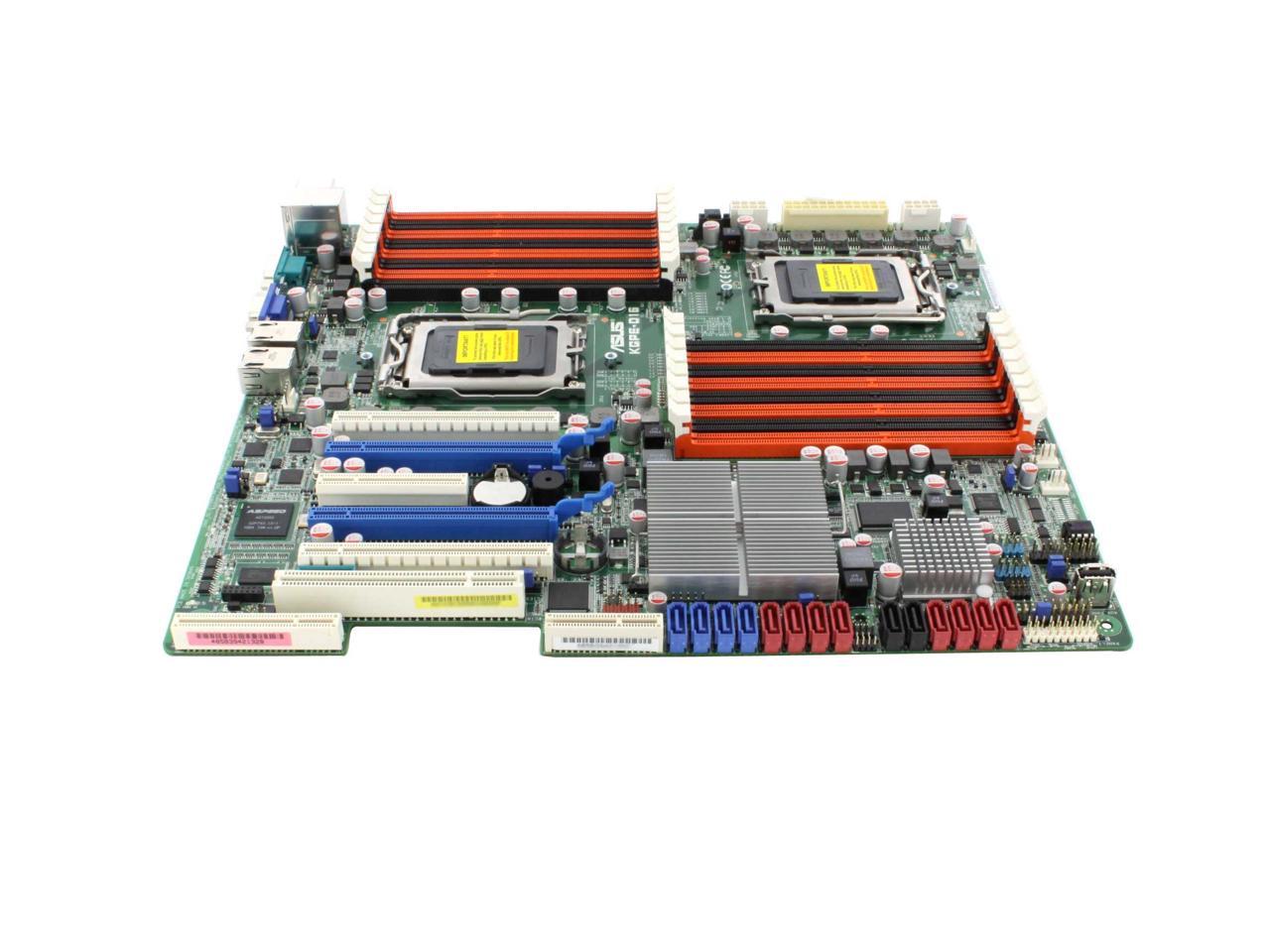

ASUS KGPE-D16 SSI EEB Server Motherboard
SKU: 9SIA4RE88W871413.370.955₫
Dual Socket G34
AMD SR5690
Description
var ccs_cc_args = ccs_cc_args || []; ccs_cc_args.push([‘mf’,’ASUS’]); ccs_cc_args.push([‘pn’,’KGPE-D16′]); ccs_cc_args.push([‘lang’, ‘en’]); ccs_cc_args.push([‘market’, ‘US’]); (function () { var o = ccs_cc_args; o.push([‘_SKey’, ‘1b1e8766’]); o.push([‘_ZoneId’, ‘faa3fafd5b’]); var sc = document.createElement(‘script’); sc.type = ‘text/javascript’; sc.async = true; sc.src = (‘https:’ == document.location.protocol ? ‘https://’ : ‘//’) + ‘cdn.cs.1worldsync.com/jsc/h1ws.js’; var n = document.getElementsByTagName(‘script’)[0]; n.parentNode.insertBefore(sc, n); })();
#overview-content .logoPart{height:70px; text-align:left; background: url(//images10.newegg.com/BizIntell/item/13/131/13-131-643/logobg.jpg) repeat-x; }
#overview-content .topbanner{width:100%; height:388px; background:url(//images10.newegg.com/BizIntell/item/13/131/13-131-643/bg.jpg) no-repeat center; margin:0 auto; }
#overview-content .clearF{clear:both;}
#overview-content .title{font-size:24px; margin:20px 0; font-weight:bold; text-align:center; }
#overview-content .descRight {margin: 0 auto; padding: 5px 20px; display: block; overflow: hidden; }
#overview-content .descRight img {float: right; margin: 0 0 0 20px; }
#overview-content .descLeft {margin: 0 auto; padding: 10px 20px; display: block; overflow: hidden; }
#overview-content .descLeft img {float: left; margin:0 20px 0 0; }
#overview-content .centerF{margin:0 auto; text-align:center; }
#overview-content .subtitle{font-size:16px; font-weight:bold; margin:0; }
#overview-content ul li{list-style:disc; line-height:18px; list-style-position:inside; margin-bottom:8px; }
#overview-content p {margin:20px 0;font-size:13px;line-height:18px;}
#overview-content .centerF{text-align:center; margin:0 auto; }
ASUS KGPE-D16 SSI EEB Server Motherboard
G34 Mainstream Performance and Power Efficiency
The ASUS KGPE-D16 server motherboard delivers significant computing capability with 16DIMM slots and high expandability with six expansion slots – conquering the most intense and demanding tasks.
Supports Up-To-Date AMD 16/12 Core CPUs
KGPE-D16 is based on latest AMD G34 chipset architecture to support 45nm Opteron™ 6300 / 6200 / 6100 series processors. The platform is designed for highly threaded application, delivering 16 / 12 / 8 core multi-core performance, quad HT3 links with up to 6.4GTps interconnect rate per link, and a 12MB shared L3 cache.
Standard EEB with 16 DIMMs & Industrial Standard Riser Card Slot (Slot 6)
KGPE-D16 is designed in EEB (12″ x 13″) form factor, with 16 DDR3 1600* memory DIMMs to support up to 256GB (RDIMM). By supporting industrial standard PCI-E x16 (Gen2 x16 link) Full Height & Full Length Card in 1U, this board offers you the highest memory capacity without source for proprietary chassis & riser solution.
*DDR3 1600 can only be supported with AMD Opteron 6300/6200 series processor.
Dual Use for Server (Rack Ready) & Workstation
The ASUS Flex-E technology provides the flexibility to auto-switch between two true PCI-E x16 Link (support two double deck graphic cards) or one PCI-E x16 Link & two PCI-E x8 Link (for I/O expansion). Moreover, the boards supports ASUS MIO audio card, which offers enhanced signal-to-noise ratio in a 7.1-channel surround setup to deliver an exhilarating surround sound for professional usage.
High Quality Components for Greater System Reliability & 85% Power Efficiency
ASUS is the first company to phase in 6-Phase CPU power, 3-Phase memory power and All Ultra Long Life Solid capacitors on serverboard in the market. These features not only provide the support for high-end 140W CPU, but also deliver highly efficient and reliable operations.
ASUS Proprietary I/O Kit Expansion (PIKE) SAS2 6G Storage Supported
KGPE-D16 supports ASUS PIKE 2008/IMR for RAID 0, 1, 10, and 5; and PIKE 2008 for RAID 0, 1, 10 and 1E. The design of ASUS PIKE brings two key advantages:
- Provide flexible SAS storage add-on card selection.
- Board edge design: locate PIKE expansion at the edge of the board for full height card support when PIKE is installed.
Optional ASMB4-iKVM for Remote Management
The optional ASMB4-iKVM provides remote real-time full control access to the system based on BIOS-level by keyboard, video monitor and mouse (KVM over Ethernet) from any local computer anywhere, anytime.
Learn more about the ASUS KGPE-D16
| Brand | ASUS |
|---|---|
| Model | KGPE-D16 |
| CPU Socket Type | Dual Socket G34 |
|---|---|
| CPU Type | Dual AMD Opteron 6300/6200/6100 series |
| System Bus | HyperTransport Technology 3.0 6.4 GT/s per link (triple link) |
| North Bridge | AMD SR5690 |
|---|---|
| South Bridge | AMD SP5100 |
| Number of DDR3 Slots | 16 x 240pin |
|---|---|
| DDR3 Standard | DDR3 1600/1333/1066/800 UDIMM DDR3 1600/1333/1066/800 RDIMM |
| Maximum Memory Supported | 256GB RDIMM |
| PCI Express x16 | Slot Location 2: PCI-E x16 (Gen2 X8 Link) Slot Location 3: PCI-E x16 (Gen2 X16 Link), Auto switch to x8 link if slot 2 is occupied Slot Location 5: PCI-E x16 (Gen2 X16 Link) Slot Location 6: PCI-E x16 (Gen2 X16 Link), Auto turn off if slot 5 is occupied, For 1U FH/FL Card, MIO supported |
|---|---|
| PCI Express x8 | Slot Location 4: PCI-E x8 (Gen2 X4 Link) |
| PCI Slots | Slot Location 1: PCI 32-bit / 33 MHz |
| Other Slots | Additional Slot 1: PIKE Slot for Stroage expansion |
| SATA | 6 x SATA 3.0Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| SAS | SAS / SATA Controller : ASUS PIKE 2008 8-port SAS2 6G RAID card (Optional) ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card(Optional) ASUS PIKE 2108-32PD 8-port SAS2 6G RAID card (Optional) ASUS PIKE 2208 8-port SAS 6G HW RAID card (Optional) ASUS PIKE 2308 8-port SAS 6G RAID card (Optional) ASUS PIKE 9230 4-port SATA 6G RAID card (Optional) |
| Onboard Video Chipset Onboard Video Chipset | Aspeed AST2050 |
|---|
| LAN Chipset | Intel 82574L |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Intel 82574L |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | Dual 10/100/1000Mbps |
| PS/2 PS/2 | 1 x PS/2 keyboard/mouse port |
|---|---|
| Video Ports | 1 x VGA Port |
| RJ45 | 2 x RJ45 |
| USB 1.1/2.0 | 2 x External USB Port |
| Features | The ASUS KGPE-D16 server motherboard delivers significant computing capability with 16DIMM slots and high expandability with 6 expansion slots to cater to the most intensive and demanding tasks. |
|---|
| Form Factor | EEB |
|---|---|
| Dimensions (W x L) | 12.0″ x 13.0″ |
| Date First Available | February 11, 2019 |
|---|
