AMD FirePro S400 100-505981 Synchronization Module

AMD FirePro S400 Synchronization Module

With high-end performance and dedicated features, the AMD FirePro S400 synchronization module allows selected AMD FirePro graphics cards to be used in demanding applications that require synchronization to external sources (Genlock) or synchronization of 3D rendering of multiple GPUs in different systems (Framelock).

It allows for connecting multiple computers and their GPUs together, allowing for multiple channels of 3D-rendered content to be presented simultaneously and in lock-step. On board logic is dedicated to Genlock and Framelock functionality, helping to ensure accurate and consistent synchronization for all applications. The support for up to four GPUs per mode enables high density of workstation GPUs in a system. The house sync capability through the BNC input ensures it’s genlockable to nearly any source. Plus, the AMD FirePro S400 comes in a single-slot form-factor, and supports field upgradeable firmware.

Features and Benefits

• Support for up to four GPUs per module
• Field upgradeable firmware
• Full hardware synchronization
• Support for connecting multiple computers and their GPUs together
• Sync to virtually any video source
• Serial ATA power connector

Support for Up to Four GPUs Per Module

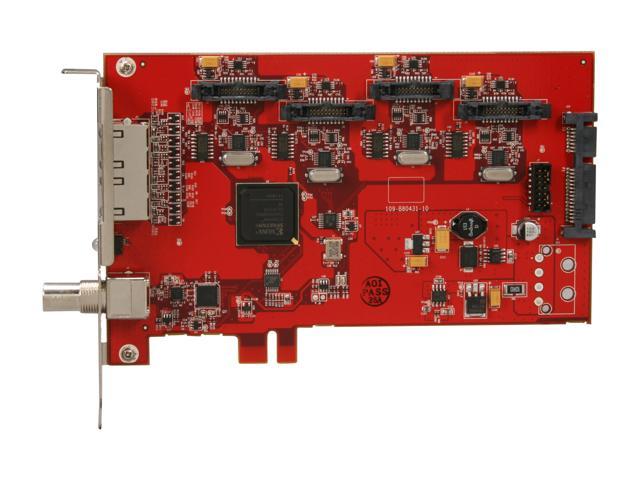

Based on a full hardware, dedicated processor design, the AMD FirePro S400 helps ensure clock-accurate synchronization in virtually all scenarios. The dedicated processor allows up to four attached GPUs to work in the rendering needs of the user without compromising sync.

AMD FirePro S400 Framelock for Simulation, Visualization and Power Walls

The AMD FirePro S400 delivers Framelock by combining Output lock (synchronized display output) and 3D swap lock (simultaneous 3D buffer swapping), helping ensure that the GPUs in connected systems present their output in lock-step.

The AMD FirePro S400 delivers Framelock by combining Output lock (synchronized display output) and 3D swap lock (simultaneous 3D buffer swapping), helping ensure that the GPUs in connected systems present their output in lock-step.

AMD FirePro S400 Genlock for Broadcast, NLE and Other Video Workflows

The AMD FirePro S400 permits Genlocking by delivering Output lock ((synchronized display output) that is driven by an external reference signal (typically ‘house sync’). This allows the output of attached GPUs to be fed into video-centric devices (e.g. monitors used in broadcast applications, or Non-Linear Editing suites).

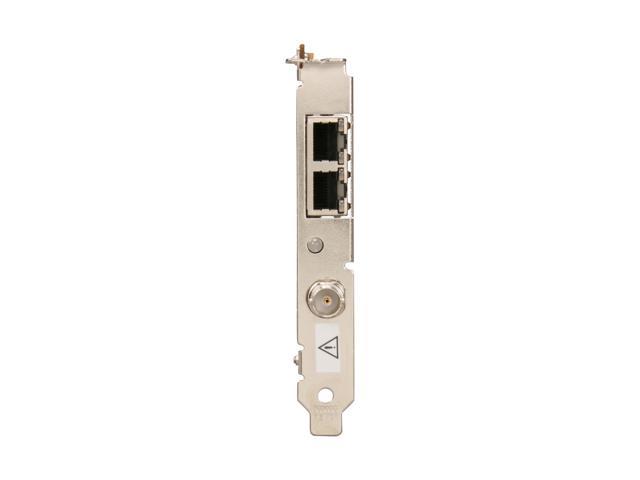

The BNC connector on the AMD FirePro S400 allows for receiving and synchronizing to virtually any video input source, including:

• PAL & NTSC SD video blackburst
• HDTV tri-level sync
• TTL
• Sync signals on SDI

Field Upgradeable

Improved functionality can be deployed after initial installation of the module without opening the host computer.

Serial ATA Power Connector

The AMD FirePro S400 allows power to be provided by a modern power connector, as the older 4-pin IDE connector is becoming obsolete, particularly in newer OEM chassis designs.

Innovation and Reliability from a Technology Leader

AMD FirePro accelerators, including the AMD FirePro S400, have been engineered to deliver innovation and reliability for a wide range of professional operating environments, including Windows XP, Windows Vista, Windows 71 and Linux. The unified driver, which supports all AMD FirePro workstation products, helps reduce the total cost of ownership by simplifying installation, deployment and maintenance.
