COMeap PCIe 8 Pin Male to Dual PCIe 2X 8 Pin (6+2) Male Power Adapter Cable for Seasonic Power Supply 25-inch+9-inch (63cm+23cm)

The COMeap PCIe 8 Pin male to Dual PCIe 8 Pin (6+2) male cable is to provide a convenient solution for adding two extra PCI Express connectors to your existing seasonic power supply;

Support:

(X-1050XM2/X-1250XM2) (SS-660/760/860XP2 series) (X-Series – X-650 KM3/X-750 KM3/X-850 KM3)

(SS-1050/1200XP3)(Seasonic_Snow_Silent 750W/1050W) (M12II Evo series 520/620/650/750/850)

(Seasonic FOCUS+ series), SSR-1000TR,SSR-1000PD/SSR-1200PD/SSR-650td

Specification:

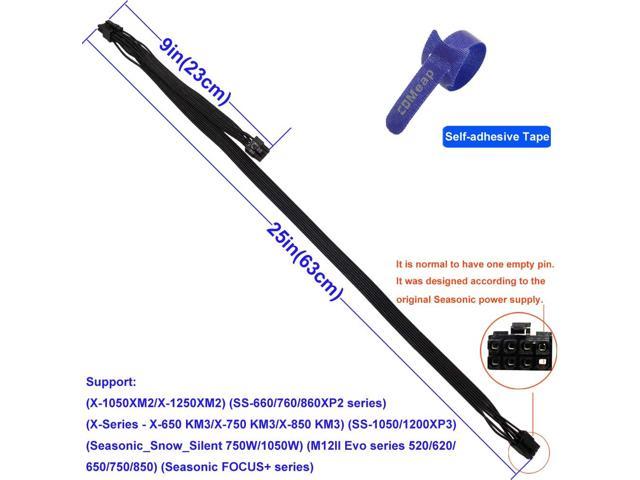

Length(including connectors): 25-inch + 9-inch(63cm+23cm);

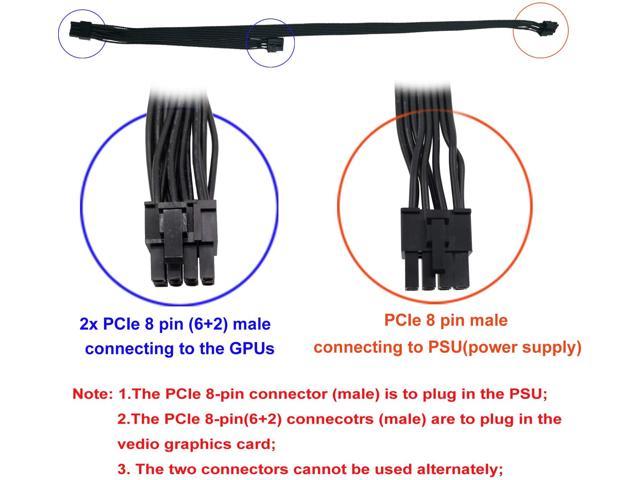

Connectors: 2x 8 pin (6+2) PCIe male, 1x PCIe 8 pin male;

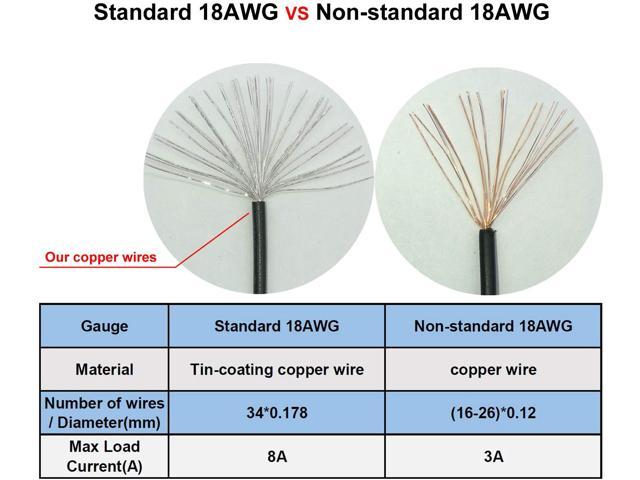

Gauge: 1007-18AWG(standard tin-coating copper wire)

Including:

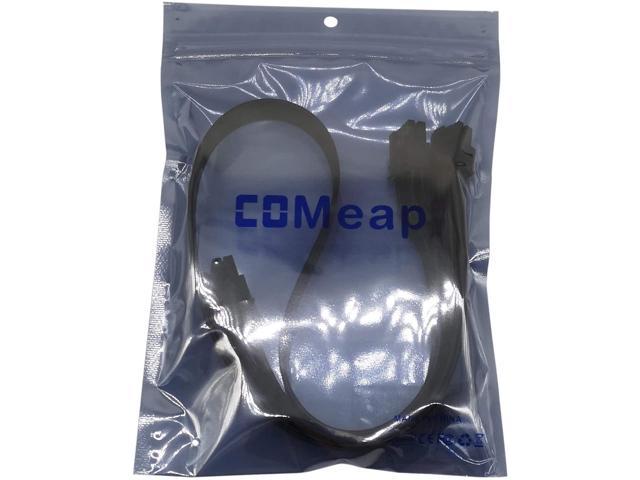

PCIe 8 Pin male to Dual 2x 8 Pin (6+2) male cable for Seasonic PSU *1pcs;

Self-adhesive tape*1pcs;

Note:

1.Please check the specifications of your graphics card and PSU for power requirements when to use this cable.

2.PCle male connector with a latch provide a safe connection to prevent accidental disconnection.Please depress the button before unplugging;

3.This cable was only designed for graphics vedio cards, it does not work with motherboards;

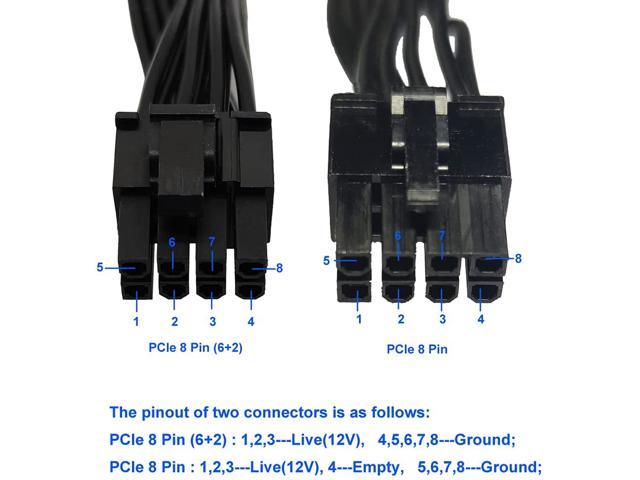

4.The 8 pin male connector is PCIe 8 pin, not CPU 8 pin, which was designed for Seasonic PSUs with PCIe 8 pin port, please carefully check the photos for details;
