Adapter cable For Corsair RGB Fan (4-pin) to Asus Aura/MSI Mystic Light Addressable RGB
SKU: 9SIB4D1JES3790260.715₫

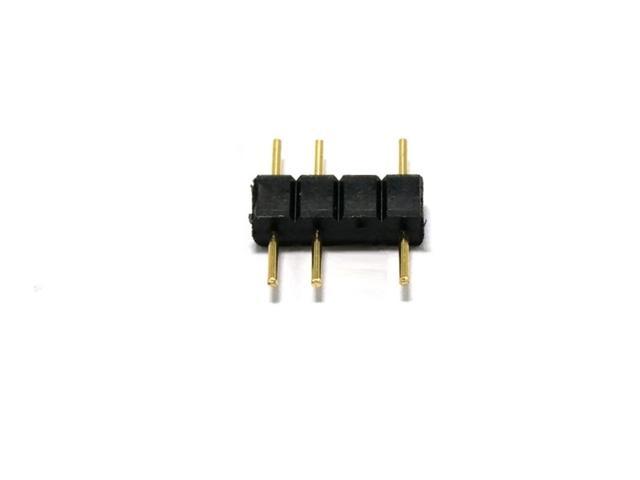

Packing includes:1 x Conversion cable1 x Male 3Pin socket
Description

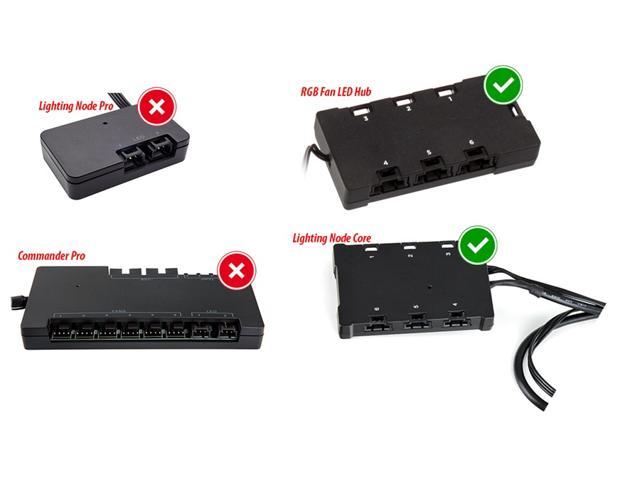

1) This adapter only works with a Lighting Node Core or RGB Fan LED Hub. It will not connect to a Ligthing Node Pro or for Commander Pro (though they may control the Fan Hub. ) It also will not work for new Commander Core that comes for Capellix AIO coolers. 2) If your device does not have its own power source, you need to make sure that the current draw on a single Hub or Lighting Node Core is limited to approximately 4.5A ( 22.5W ). This will come out to roughly 120 RGB LEDs.
However you may need to check the specifications of any LEDs that you connect. If you exceed the limit, you may overload the SATA power connector. 3) You’ll have to configure your devices in iCue based on the number of LEDs. You can choose from HD (12 LEDs), LL (16 LEDs), ML (4 LEDs), SP-PRO (8 LEDs), QL (34 LEDs) fans or RGB Strips (10 LEDs). Do not configure them as SP-RGB fans! You’ll need to count the number of LEDs on your devices and then configure the lighting channel to have the same (or slightly greater) number of LEDs.
4) This will not allow you to control your motherboard or GPU LEDs. Those aren’t controlled by connecting wires. This will only control 5V Addressable RGB LEDs. 5) This will not allow you to control 12V (4-pin) analog LEDs. They operate on a different protocol and are incompatible. You can use for Solarity Tech ArrRGB DAC to control 12V (4-pin) analog LEDs.

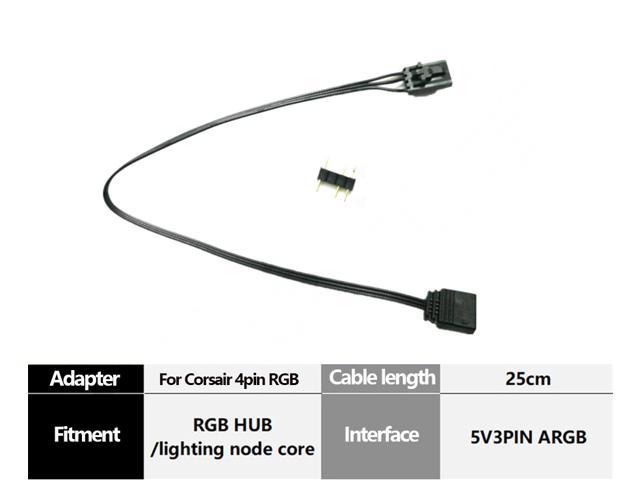

Specifications: Brand new and premium quality
Voltage: 5V
Cable length: 25cm
Wiring: 5V3Pin
A-RGB Packing includes: 1 x Conversion cable 1 x Male 3Pin socket
Learn more about the Detailed Specifications
| Best Seller Ranking | #2 in Power Splitter Cords |
|---|
| Date First Available | June 11, 2022 |
|---|
Related products
Yên tâm mua sắm
NGUỒN HÀNG ĐẢM BẢO
Hàng hóa trên HQG.VN được bán bởi các các nhà cung cấp lớn và uy tín nhất thế giới.
GIÁ CẢ CẠNH TRANH
HQG.VN đem đến cơ hội mua sắm hàng hóa chất lượng quốc tế, giá Việt Nam cho tất cả mọi người.
GIAO HÀNG TOÀN QUỐC
HQG.VN giao hàng miễn phí tới tất cả 63 tỉnh thành trên toàn quốc.
THANH TOÁN THUẬN TIỆN
Hỗ trợ nhiều phương thức thanh toán. Được đảm bảo an toàn tuyệt đối bởi nganluong.vn
BẢO HÀNH SẢN PHẨM
HQG.VN có chính sách bảo hành chính hãng cho các sản phẩm
HỖ TRỢ 24/7
Tổng đài hỗ trợ: 028.7309.6999
Bảo hành 24/7: 1900636106
Description
1) This adapter only works with a Lighting Node Core or RGB Fan LED Hub. It will not connect to a Ligthing Node Pro or for Commander Pro (though they may control the Fan Hub. ) It also will not work for new Commander Core that comes for Capellix AIO coolers. 2) If your device does not have its own power source, you need to make sure that the current draw on a single Hub or Lighting Node Core is limited to approximately 4.5A ( 22.5W ). This will come out to roughly 120 RGB LEDs.
However you may need to check the specifications of any LEDs that you connect. If you exceed the limit, you may overload the SATA power connector. 3) You’ll have to configure your devices in iCue based on the number of LEDs. You can choose from HD (12 LEDs), LL (16 LEDs), ML (4 LEDs), SP-PRO (8 LEDs), QL (34 LEDs) fans or RGB Strips (10 LEDs). Do not configure them as SP-RGB fans! You’ll need to count the number of LEDs on your devices and then configure the lighting channel to have the same (or slightly greater) number of LEDs.
4) This will not allow you to control your motherboard or GPU LEDs. Those aren’t controlled by connecting wires. This will only control 5V Addressable RGB LEDs. 5) This will not allow you to control 12V (4-pin) analog LEDs. They operate on a different protocol and are incompatible. You can use for Solarity Tech ArrRGB DAC to control 12V (4-pin) analog LEDs.
Specifications: Brand new and premium quality
Voltage: 5V
Cable length: 25cm
Wiring: 5V3Pin
A-RGB Packing includes: 1 x Conversion cable 1 x Male 3Pin socket
Learn more about the Detailed Specifications
| Best Seller Ranking | #2 in Power Splitter Cords |
|---|
| Date First Available | June 11, 2022 |
|---|
Pros: – Allows non-Corsair ARGB devices to connect to Corsair Lightning Node CORE and iCUE Commander CORE
– Comes 3-Pin Male-to-Male ARGB adapter (this was needed as ARGB devices are female and connect to a male Header/adapter
– Shipping had excellent tracking that kept me up to date with status/location of my order
Cons: – shipping took some time (but overall it arrived sooner than projected ETA)
– I suppose if you wanted to connect this to a Lighting Node PRO or Commander PRO, this won’t work; you need to 3-Pin for PRO and 4-Pin for CORE (I really like that this was called out in a picture on the item’s listing; That made it really easy for me)
Overall Review: I looked all over for this specific cable and was only able to find the (3-pin) variant in most places. Didn’t feel great about buying it off the marketplace but the tracking was very transparent about where it was at all times and it arrived sooner that I originally expected. Worked perfectly. We wanted to plug the ARGB connector on a Radeon GPU into a Corsair Lighting Node CORE. Worked like a charm and able to control the RGB in iCUE with the rest of the fans ^_^
