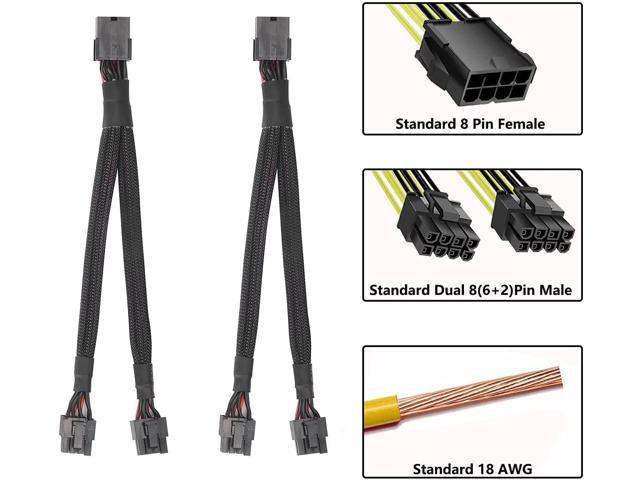

8 Pin Female to Dual 8 Pin (6+2) Male

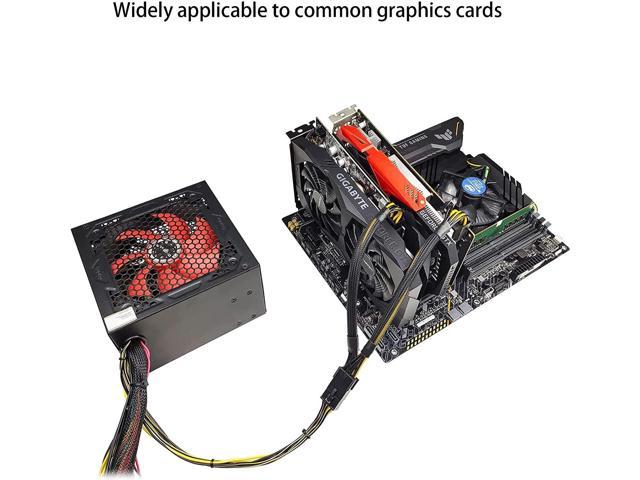

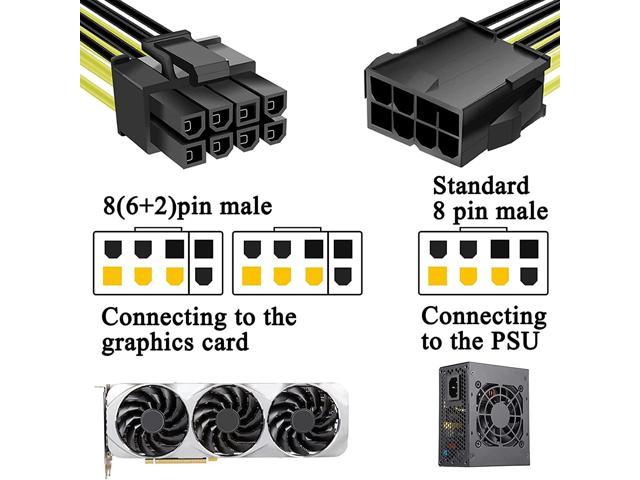

PCIe Splitter: The 8 pin PCIe female end to plug into the PCIe 8 pin male cable of the non-modular or semi-modular power supply and the two 8 Pin (6+2) male ends are plugged into the graphics card.
(Note: It does not work with
Fully-modular PSUs)Reliability Use: 8 pin pcie splitter adopts Standard cable each cable is made of high-quality copper wires and the outside is protected by a braided sleeve which is durable wear-resistant and flame-retardant.
Additional Connectors: Efficient solution for adding two additional PCI Express connectors to an existing power supply.

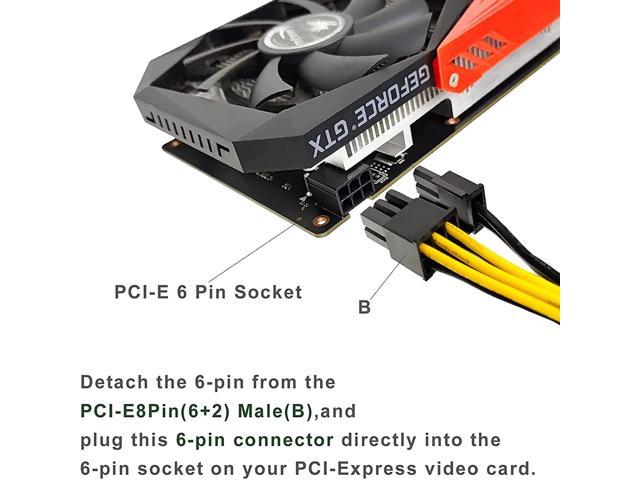

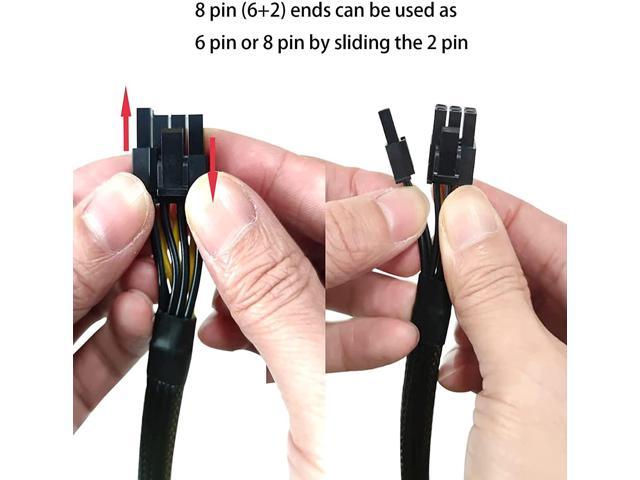

Compatibility: Compatible with 6-pin & 8-pin graphics cards from popular manufacturers. The 8 pin (6+2) ends could be used as 6 pin or 8 pin end by sliding on/off the 2 pin.
Designed for GPU: This cable is only designed for graphics vedio cards it does not work with motherboards. If you connect it with the motherboard it will definitely burn or damage the motherboards
