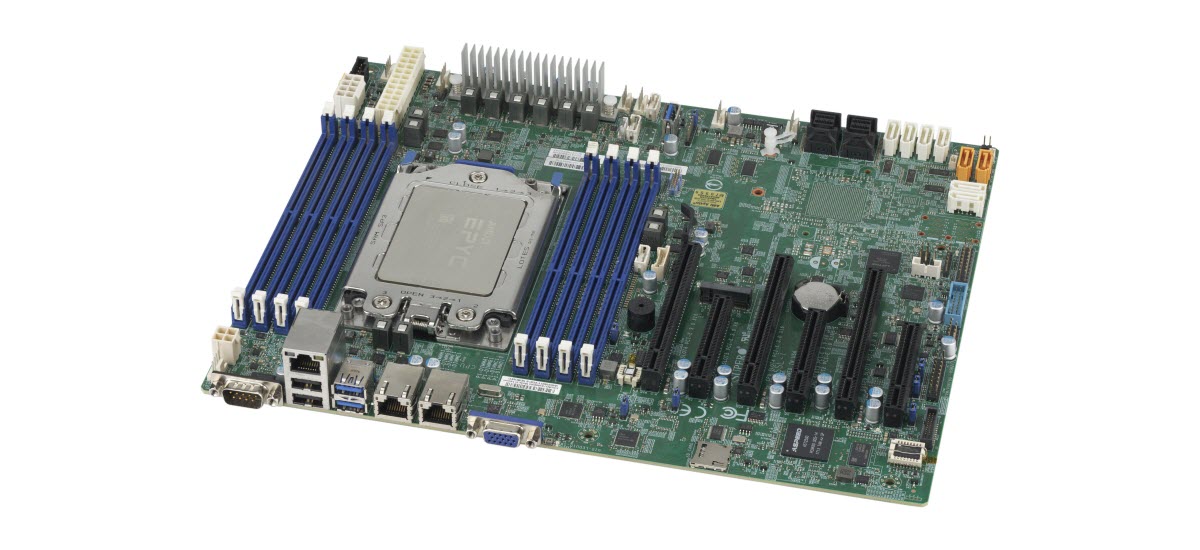

Designed to handle complex computing workloads, the Supermicro MBD-H11SSL-i comes pre-installed with AMD EPYC Rome 7502P processor, a new server supercharger that provides unparalleled performance and efficiency. You only need to add the components needed, such as ECC DDR4 memory, graphics card and SATA/NVMe storage, to build a powerful system that helps you take the lead in your industry.

Power for Excellence

Based on cutting-edge “Zen 2” architecture and built using advanced 7nm process technology, the all-new AMD EPYC Rome 7502P processor brings far more instructions per cycle (IPC) throughput, more cores and more cache into a smaller area, and more energy efficiency when compared to the previous generation. No server application is heavy with the power of its 32 cores (64 threads) running at up to 3.35 GHz.

Farewell to Memory Insufficiency

High server workload is great to grow your business. But heavy traffic puts an exacting demand on your hardware. Designed with that in mind, this server motherboard is ready to take huge-capacity memory with its eight DIMM memory slots. You can install up to 1 TB registered ECC DDR4 2666 MHz SDRAM memory.

Expand for Brilliance

With three PCI-E 3.0 x16 slots and three PCI-E 3.0 x8 slots, you can add various combinations of graphics cards and add-on cards needed for high-performance computing.

Future Ready Storage

In addition to 16 SATA3 (6 Gbps) ports, the motherboard also features a M.2 slot, letting you install super-fast PCI-E 3.0 x4 solid state-drive in 2280, or 22110 form factor.

Gallery

Specifications

Physical Stats
Form Factor	ATX
Dimensions	12″ x 9.6″ (30.5cm x 24.4cm)
Processor/Cache
CPU	Single AMD EPYC 7000-series Processor Socket SP3
Cores	Up to 32 Cores
Chipset	System on Chip
System Memory
Memory Capacity	8 DIMM slots Supports up to 1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs 8-channel memory bus
Memory Type	DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes	8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
SATA	SATA3 (6 Gbps)
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2500 BMC
Network Controllers	2 1GbE LAN via Intel I210 1 Realtek RTL8211E PHY (dedicated IPMI)
VGA	ASPEED AST2500 BMC
Input / Output
SATA	16 SATA3 (6 Gbps) ports
LAN	2 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	5 USB 3.0 ports (2 rear + 2 via header + 1 Type A) 4 USB 2.0 ports (2 rear + 2 via header)
VGA	1 VGA port
Others	1 COM port (rear) 2 SATA DOM power connector 1 TPM 2.0 header
Expansion Slots
PCI-Express	3 PCI-E 3.0 x8 3 PCI-E 3.0 x16
M.2	Interface: PCI-E 3.0 x4 Form factor: 2280, 22110 Key: M-key

Chassis
1U	SC813MFTQC-350CB2 SC813MFTQC-R407CB
2U	SC213AC-R1K23LPB SC216BE1C4-R1K23LPB SC825TQC-R740LPB SC826BE1C4-R1K23LPB
3U	SC836BE1C-R1K23B
4U	SC745BAC-R1K28B2 SC846BE1C-R1K23B
Server(s)
Model(s)	AS -1013S-MTR
System BIOS
BIOS Type	AMI 128Mb SPI Flash EEPROM
BIOS Features	Plug and Play (PnP) DMI 2.3 PCI 2.2 ACPI 5.1 USB Keyboard Support SMBIOS 3.1.1
Management
Software	Super Doctor 5 Watch Dog NMI SUM IPMI 2.0, KVM with dedicated LAN
Power Configurations	ACPI Power Management Power-on mode control for AC power loss recovery
PC Health Monitoring
CPU	Monitors CPU Core Voltages, +1.8V, +3.3V, +5V, +5V standby, +3.3V standby CPU switching voltage regulator Supports system management utility VBAT
FAN	Up to 7-fan status tachometer monitoring Up to 7 4-pin fan headers Dual Cooling Zone Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU Thermal Trip Support Thermal control for 7x Fan connectors I2C Temperature Sensing Logic
LED	CPU / System Overheat LED
Other Features	Chassis Intrusion Detection Chassis Intrusion Header UID
Operating Environment / Compliance
Environmental Specifications	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
